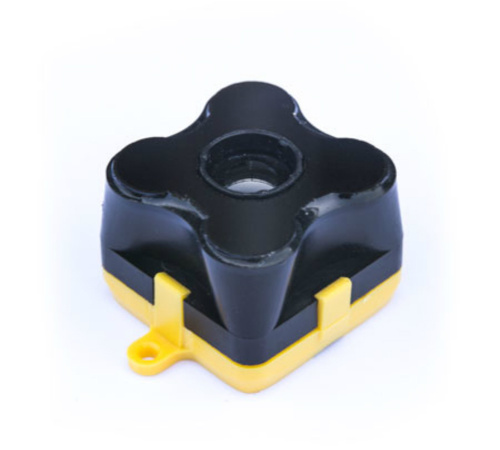

Terabee - TeraRanger Evo 3m
Close-range distance measurement, object detection and robotics sensor!

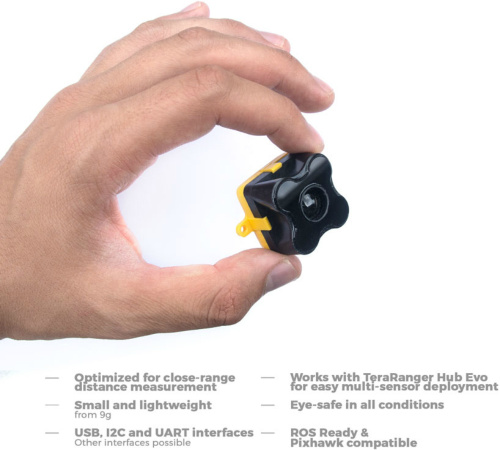

With its 10cm to 3m range, 100Hz fixed update rate and greater accuracy, Evo 3m, is optimized for close-range distance measurement! All in an easy to use, small and lightweight form-factor.
The Detail
It is ideal for robot navigation, object detection, counting and more. It also works with TeraRanger Hub Evo for easy deployment of multiple sensors. Evo 3m uses LED technology and is eye-safe in all conditions.
Technical Specifications
Technical Specifications
Principle: Infrared Time-of-Flight (ToF)
Range: 0.1m up to 3m
Update Rate: Fixed at 100Hz
Output Resolution: 0.5cm
Accuracy: +/-2cm
Field of view: Approx. 2°
Supply voltage: 5V DC +/-5%
Supply current (min-max): 70mA-250mA

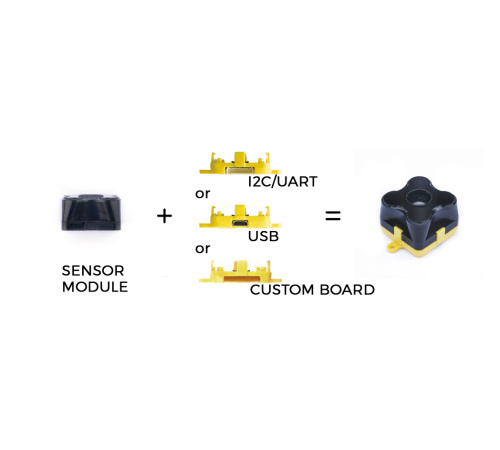

Interfaces: USB 2.0 Micro-B UART, +3.3V level, 115200,8,N,1. I2C, +3.3V level, 400kHz
Connectors: Single 9 pin Hirose DF13 Micro USB
Weight: 9g (sensor) + 3g (backboard)
Dimensions: Approx. 29x29x22mm (sensor + backboard)
Eye safety: Yes (IEC-62471 certified)
